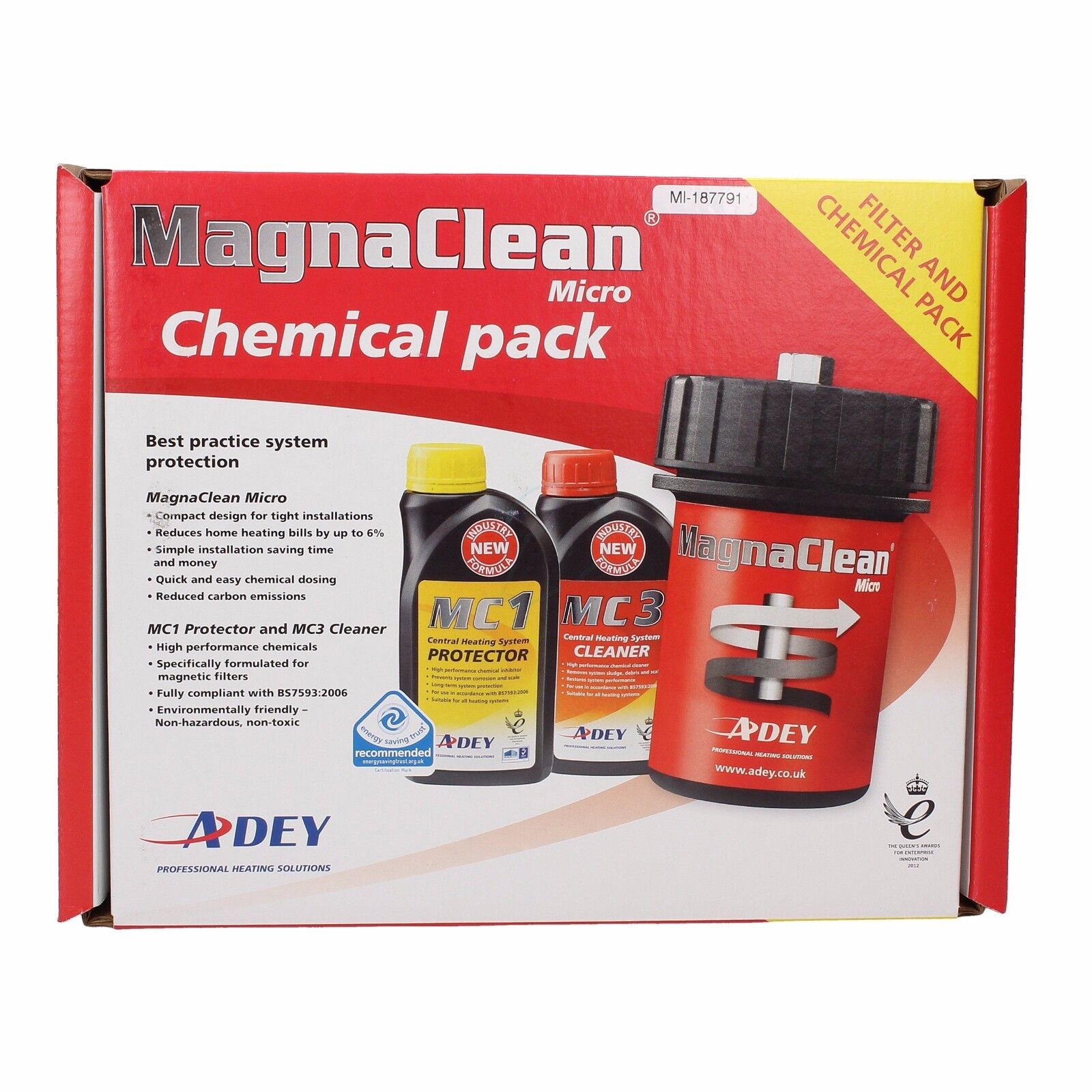

Magnaclean Micro 22mm Chemical Pack + MC1 + MC3

Technical specification - 22mm

Canister

• * Material: Glass fibre reinforced nylon
• * Fluid capacity: 0.48 Litres
• * Inlet diameter: 22mm at valve
• * Outlet diameter: 22mm at valve
• * Thread: Pressure thread
• * Flow configuration:Bi-directional - any port can be inlet.
• * Please check the louvre instructions on the sheath.

Magnet

• * Housing: Stainless steel
• * Length: 150mm
• * Diameter: 25mm

Bleed Valve

• * Body material: Nickel plated brass
• * Screw material: Nickel plated brass
• * Retainer material: Nickel plated brass
• * Ball material: Stainless steel
• * Spring material: Stainless steel
• * Outer hex: 17mm
